DIY 16-Ton Hydraulic Cable Wire Crimp Tool with 11 Dies

This hydraulic crimper has a total of 11 dies that allow you to crimp in a wide variety of sizes! Crimp everything from wires to butt connectors easily thanks to its 16 tons of crimping power and long, powerful grips! This is the ultimate crimper and is sure to handle any job you need done!

FEATURES

• Hydraulic wire crimper features 11 sets of dies for providing large crimping range from 16 to 300 square millimeters

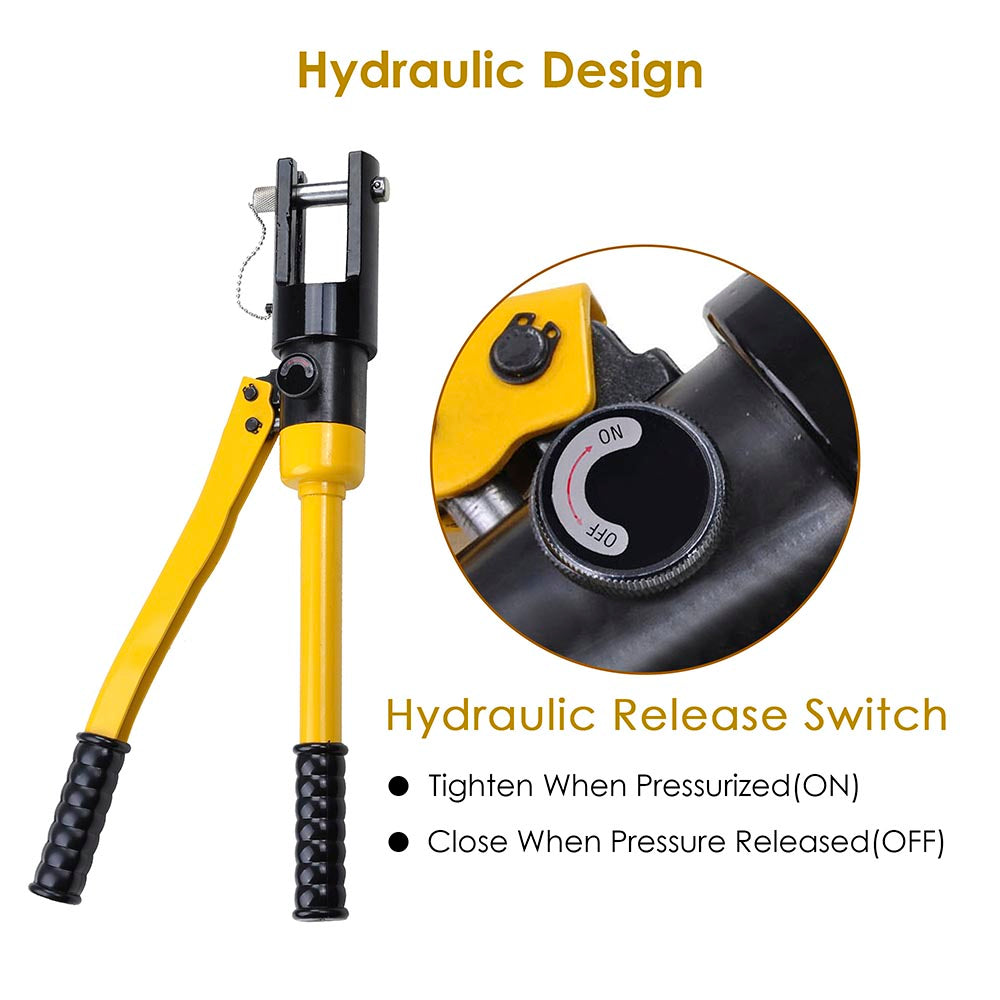

• Hydraulic Design
  • Providing 16-ton maximum crimping power to crimp wires easily and rotary on/off knob for quick release, when the pressure reaches the maximum valve, it will release automatically to prevent over pressure
  • Hydraulic crimper is much easier than using a hand crimping

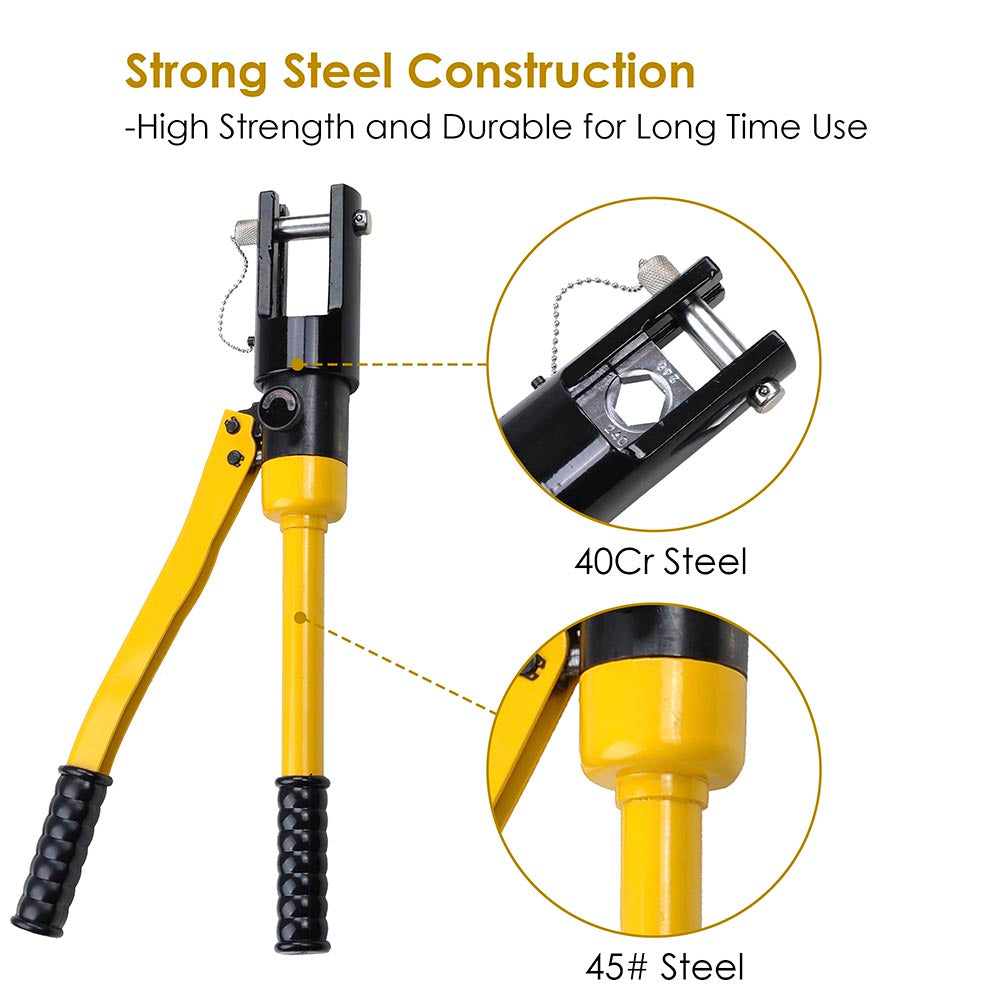

• Strong Steel Construction - Crimper features heat-treated 45# steel body and 40Cr steel crimping head for ensuring high strength and good toughness, durable hardened steel dies with chrome finish for frequent changing
• Convenient & Portable

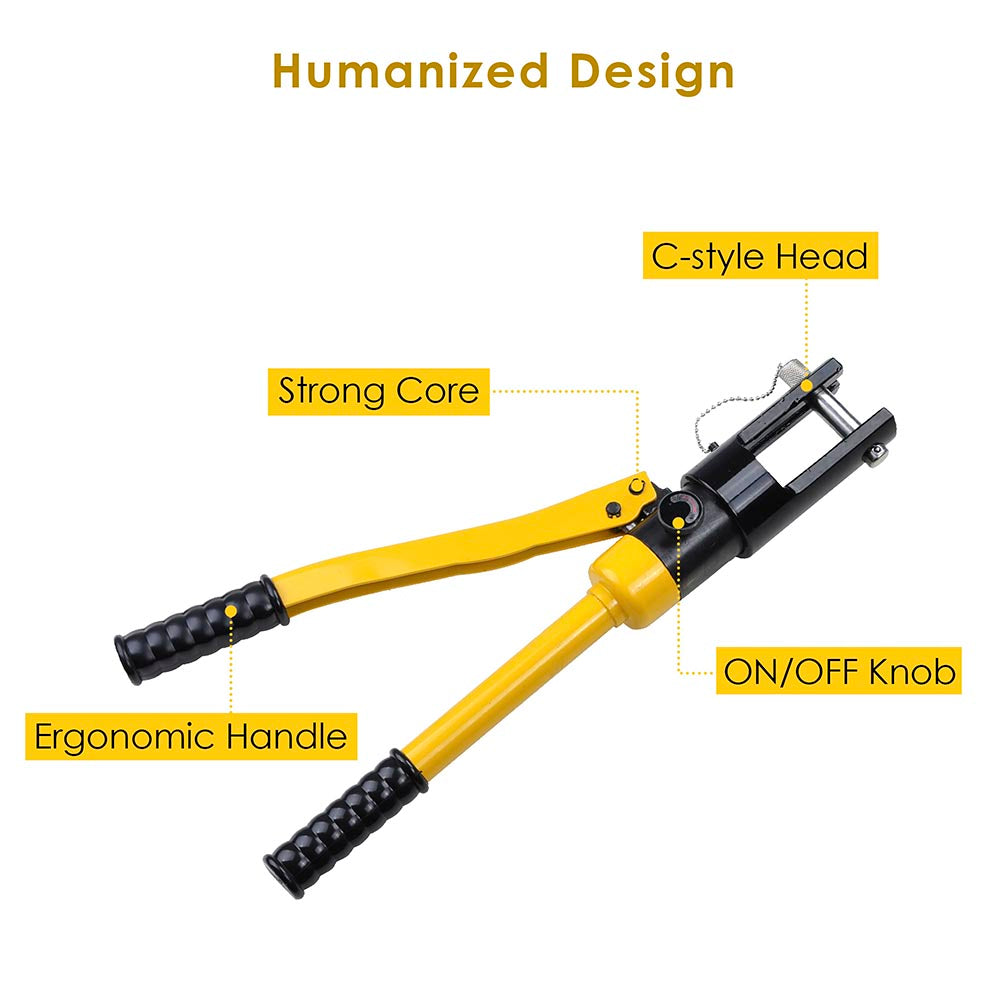

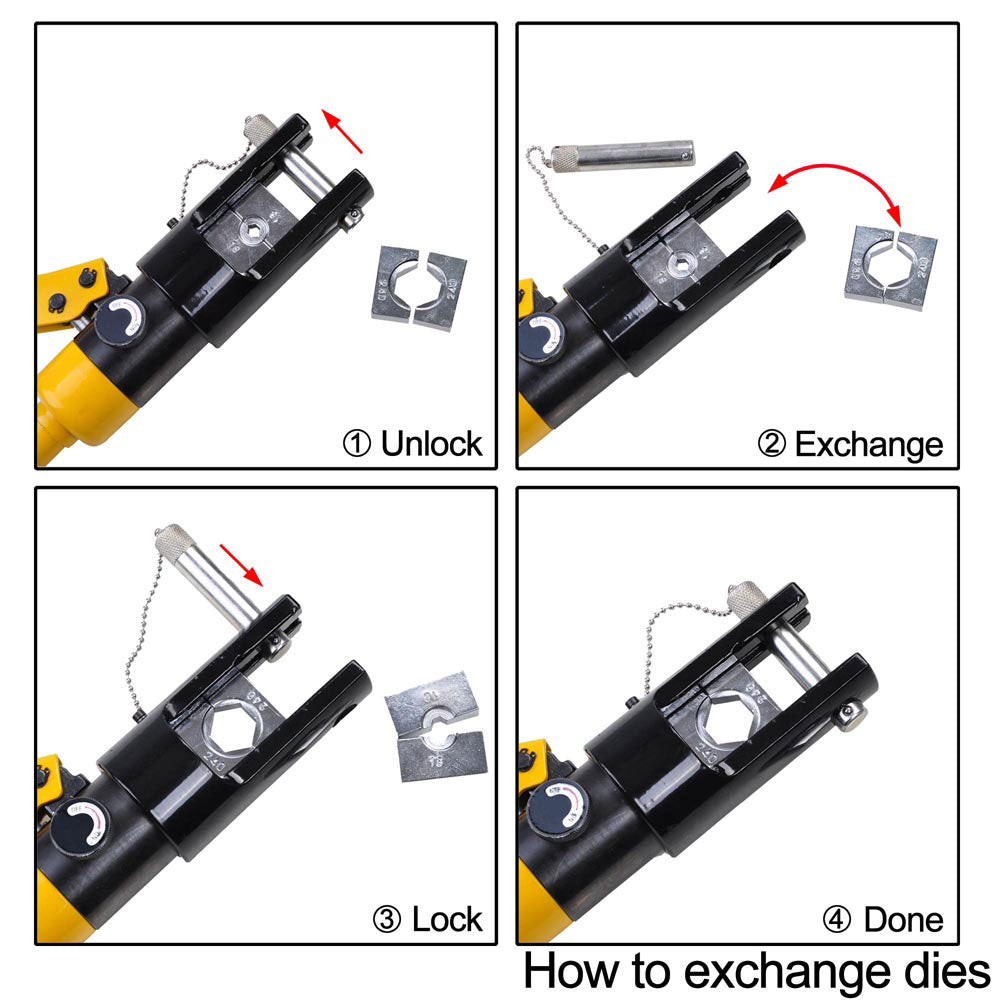

  • C-style head for easy changing the dies and fixing the wire in position
  • Long ergonomic handle for convenient and labor-saving operation

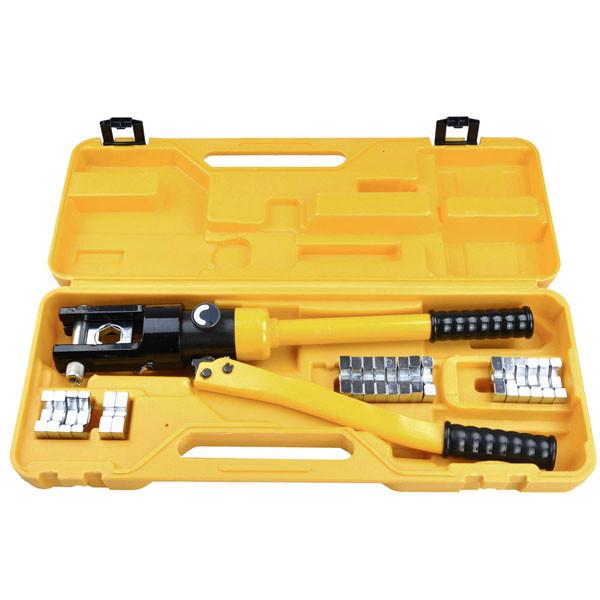

  • Blow-molded carrying case with handle for easy storage & transportation and keeping all accessories in place

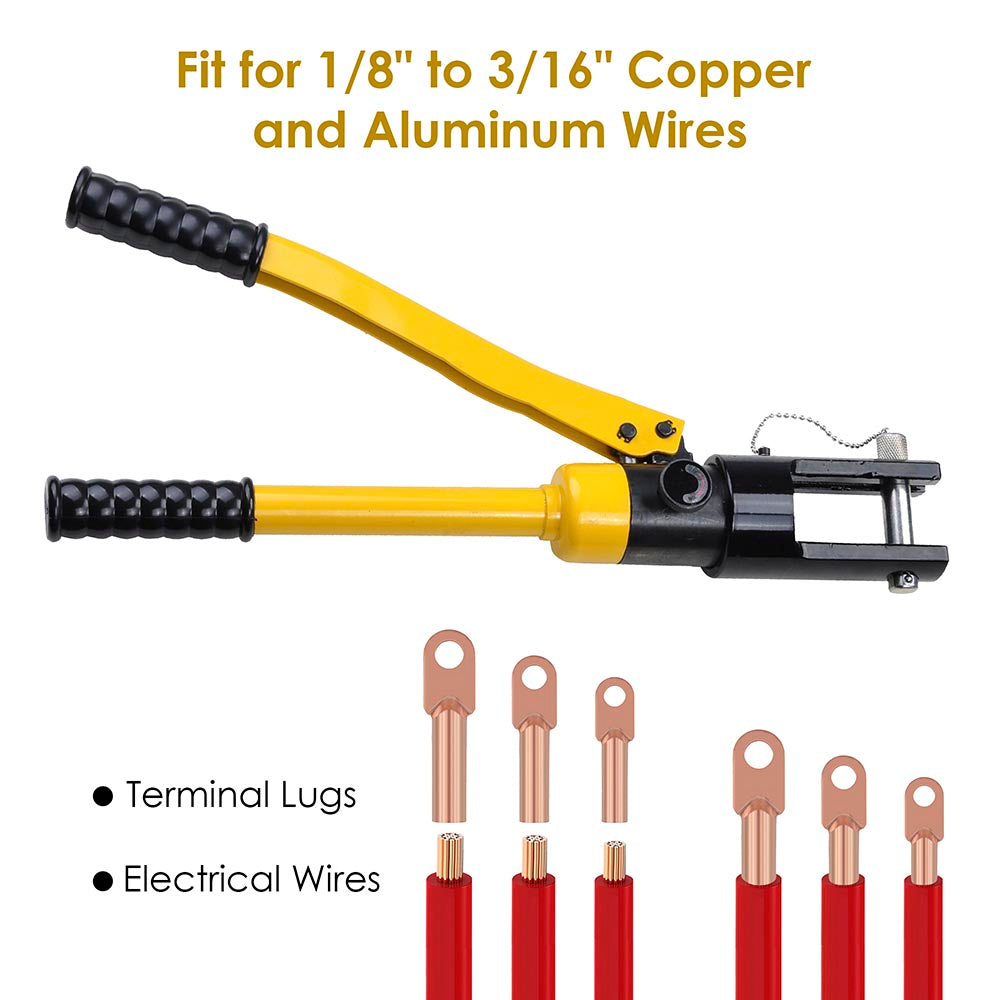

• Widely used for crimping copper and aluminum welding cables, power wires and other electrical cables which are applied on building wiring, connecting battery with wire

SPECIFICATIONS

• Length: 19 11/16" (50 cm)
• Stroke capacity: 22mm

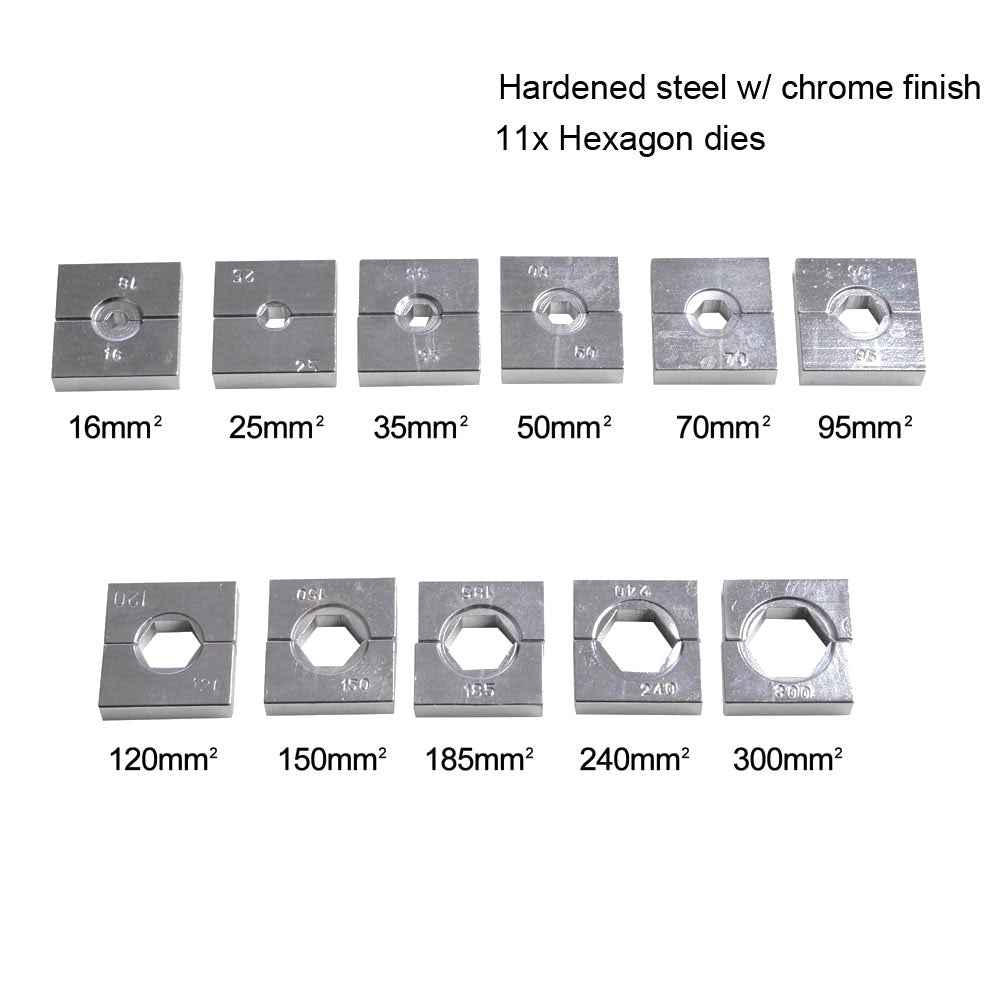

• 11x dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
• Fits For: 6 AWG to 600 MCM copper and aluminum wires
• Maximum Crimping Power: 16 Ton
• Material: 45# Steel, 40Cr Steel
• Net Weight: 13.2 Lbs (6 kg)

Reference:

AWG	MM2
6	16
4	25
2	35
1/0	50
2/0	70
3/0	95
4/0 - 250 MCM	120
300 MCM	150
350 MCM	185
500 MCM	240
600 MCM	300

PACKAGE CONTENTS

• 1x 16-Ton Hydraulic Wire Crimper
• 11x dies (One Set of Dies has installed on the crimper.)
• 1 Set of Seal Rings

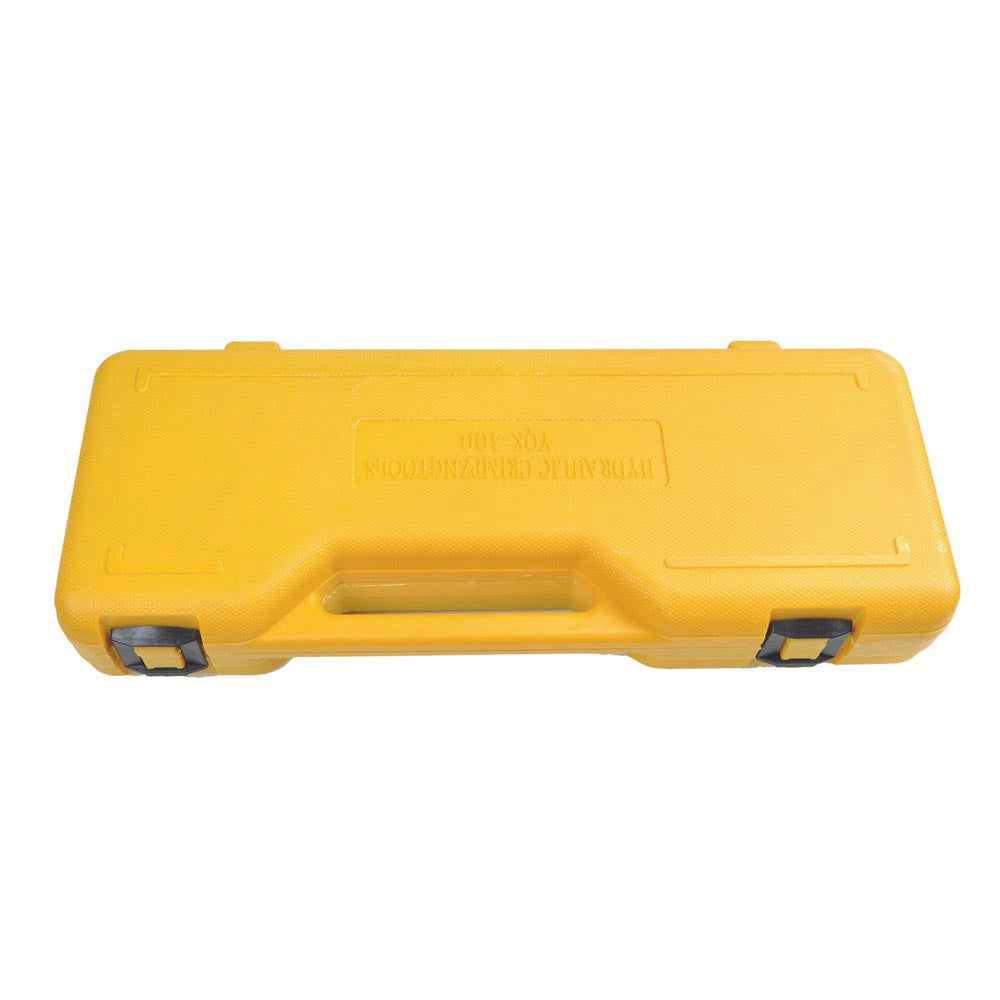

• 1x Plastic Carrying Case
• 1x Manual

Notice: Do not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram.
