DIY 26 Inch 1000w Fat Tire Ebike Conversion Kit Front Pedal Assist

DIY 26 Inch Fat Tire Front Hub Motor Kit (Without Tire) equipped with Pedal Assist to help you pedal easier and faster. Added a charger and a battery bag to the kit, it is more convenient for you. 48v 1000 watts motor has an excellent efficiency that more than 80%, allows the speed up to 45 KM/H and a climbing angle of up to 12°.

FEATURES

• Pedal Assist System (PAS) uses sensors and intelligent control algorithms to provide additional electric assistance for uphill climbs, protecting the knees and making long-distance cycling more relaxed. It also enables faster riding to smoothly navigate through congested traffic areas.
• New design of waterproof connection, more convenient and stable for Installing or maintaining
• Fits for 5 5/16" front dropout spacing and 26" x 4" tire
• Approx. 28 mile/h (45 KPH) top speed
• CE certificated for safety assurance
• Less chance to break: Drive system has no moving chains or gears, no friction, more efficient.
• Equipped with a twist throttle for easily activating the motor by twisting the grip, along with 3 indicators for displaying battery status
• Battery Recommendation: Lead Acid Battery featured in nominal voltage 48v, nominal capacity 30Ah is compatible with the motor.
• The charger has an indicator light, which is red during charging and green when fully charged

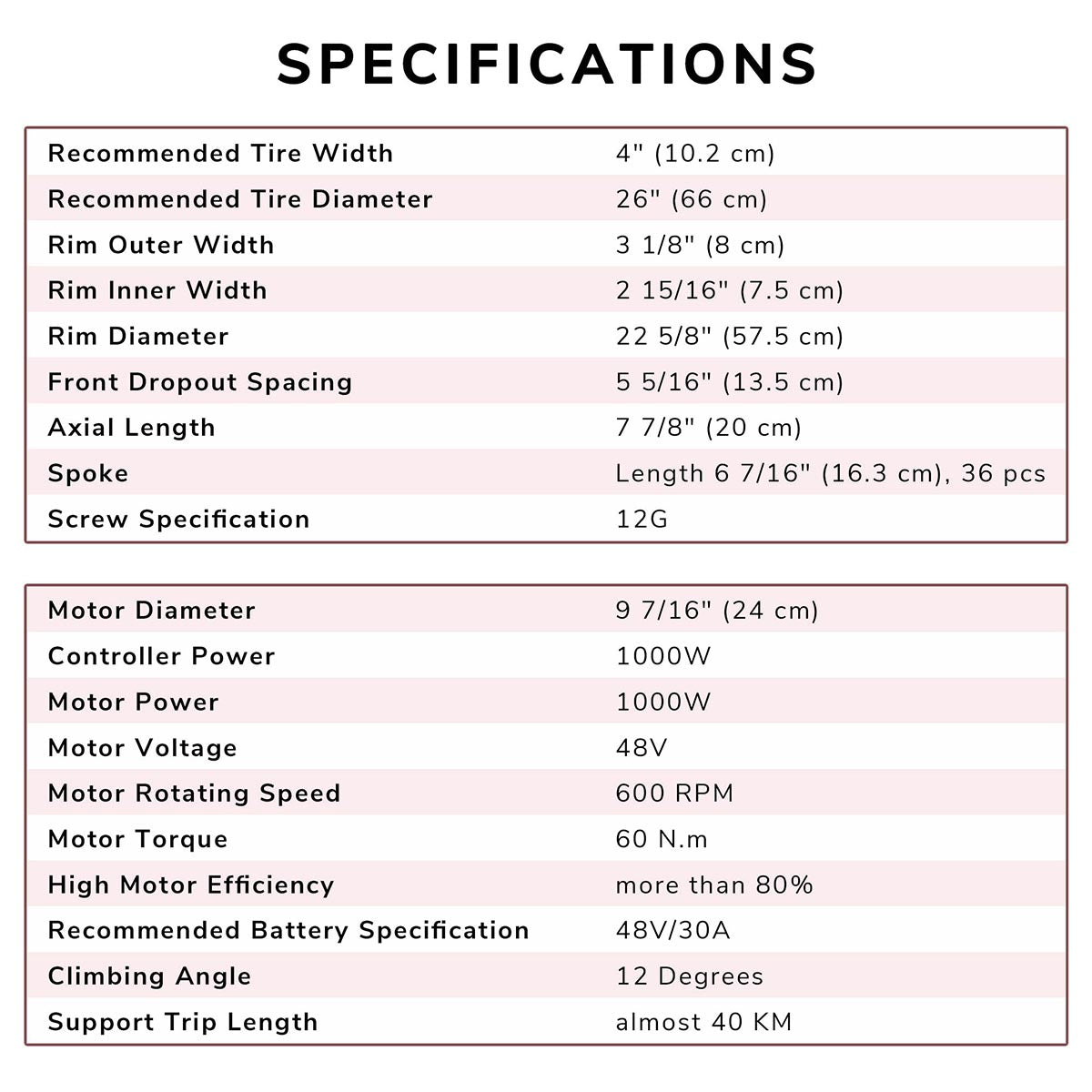

SPECIFICATION

• Overall Dimension(Dia.xW): 22 5/8" x 7 7/8" (57.5 x 20 cm)
• Compatible Tire Size: 26" x 4"
• Rim Diameter: 22 5/8" (57.5 cm)
• Axial Length: 7 7/8" (20 cm)
• Front Dropout Spacing: 5 5/16" (13.5 cm)
• Motor Diameter: 9 7/16" (24 cm)
• The Number of Spokes: 36
• Spokes Length: 6 7/16" (16.3 cm)
• Spoke Specification: 12G
• Controller Power: 1000W
• Motor Voltage: 48V

PACKAGE INCLUDES

• 1x 26" Front Wheel with Brushless Hub Motor (Tire is not included)
• 1x Dual Mode Motor Controller
• 1x 1T4 Waterproof Battery Extension Cord
• 2x Brakes Levers, 2x Handle Grips
• 1x PAS Sensor, 1x Twist Throttle
• 1x Battery carrying bag, 1x Controller Bag
• 2x Winding Pipes, 1x Hub Wire
• 10x Wire Ties, 1x Spoke Key
• 1x Manual

NOTICE

• Battery not included.
• The charger only for lead-acid battery
• 1. Must wear a helmet for protection before riding this electric bicycle.
• 2. Please go to any Bicycle Shop with a standard business license for modification.
• 3.For safety reasons, it is not recommended to use in rainy days
• 4.It is only applicable to bicycle/snow bike, not tricycles, tractors, etc;
• 5.Suitable battery type and parameters: 48V, 30 Ah, travel about 40km;Recommended capacity is at least 8.8AH or above.
• 6. If you have any questions about a compatible Model, please contact our Customer Service before purchasing.
