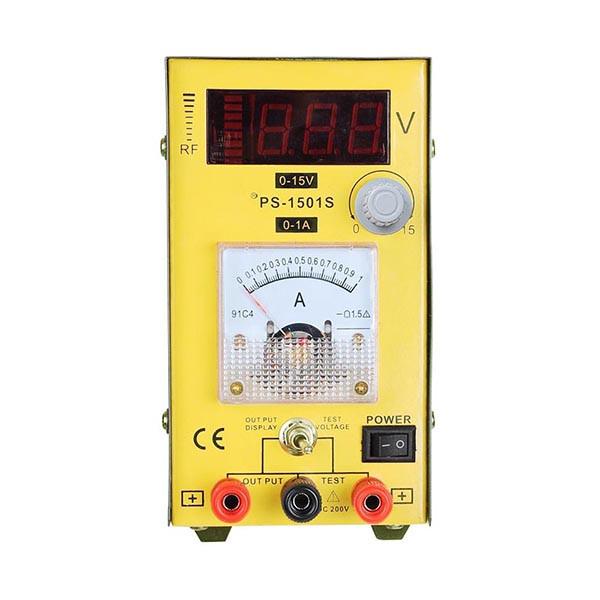

DIY Digital 15V 1A DC Power Supply for Cell Phone

This power supply is ideal for cell phone maintenance. Try it and experience the compact design, LED display, all metal construction, highly stabilized output voltage and short circuit protection.

What You're Getting:

• All Metal Construction;

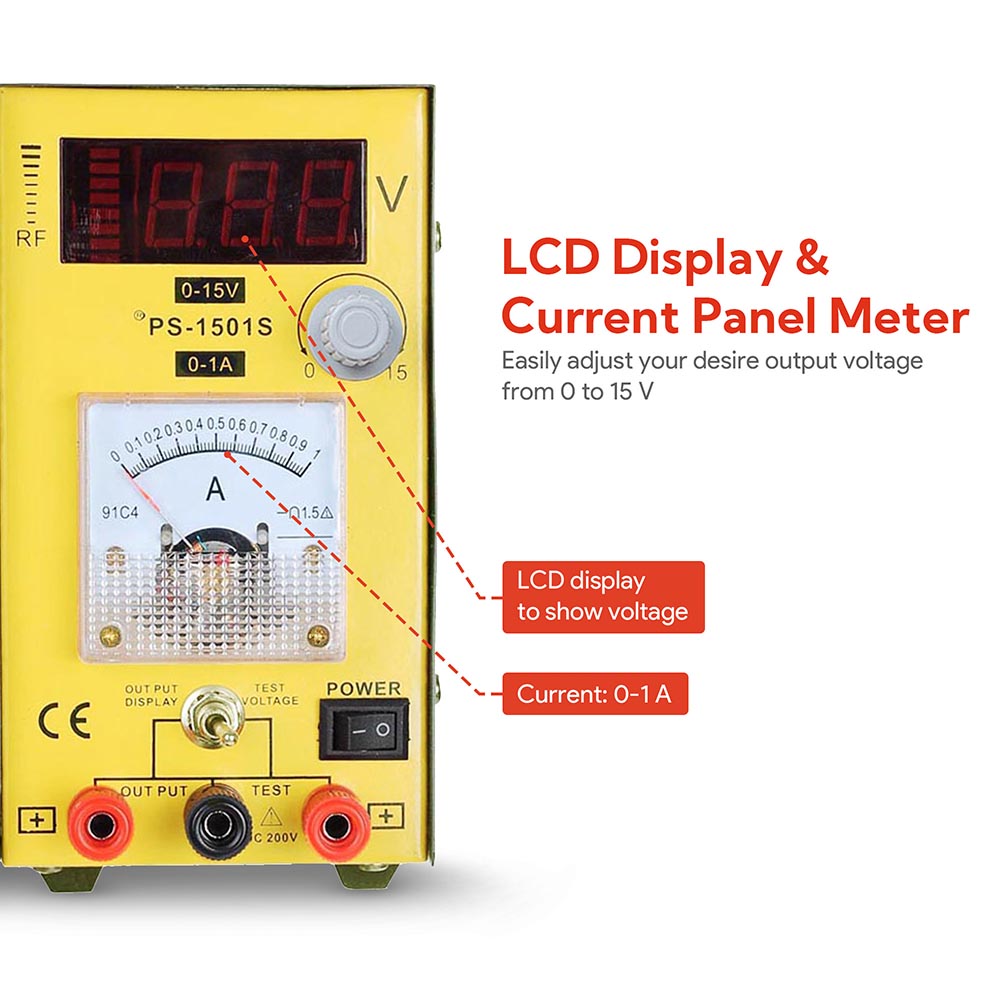

• LED Display
• Highly Stabilized Output Voltage
• Short Circuit Protection
• 1 Multimeter Test Hook Clip Probe Cable for DC power supply to repair and maintain cell phones
• 1pair Multimeter Test Lead Wires for testing electronics with multimeters and other instruments

Operating Conditions

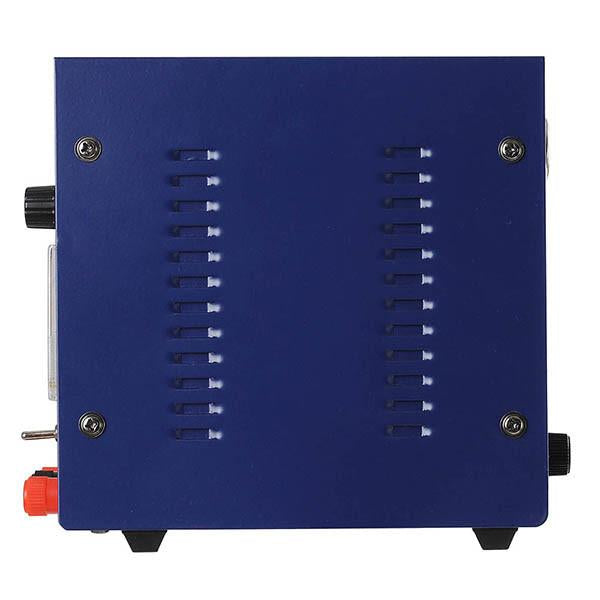

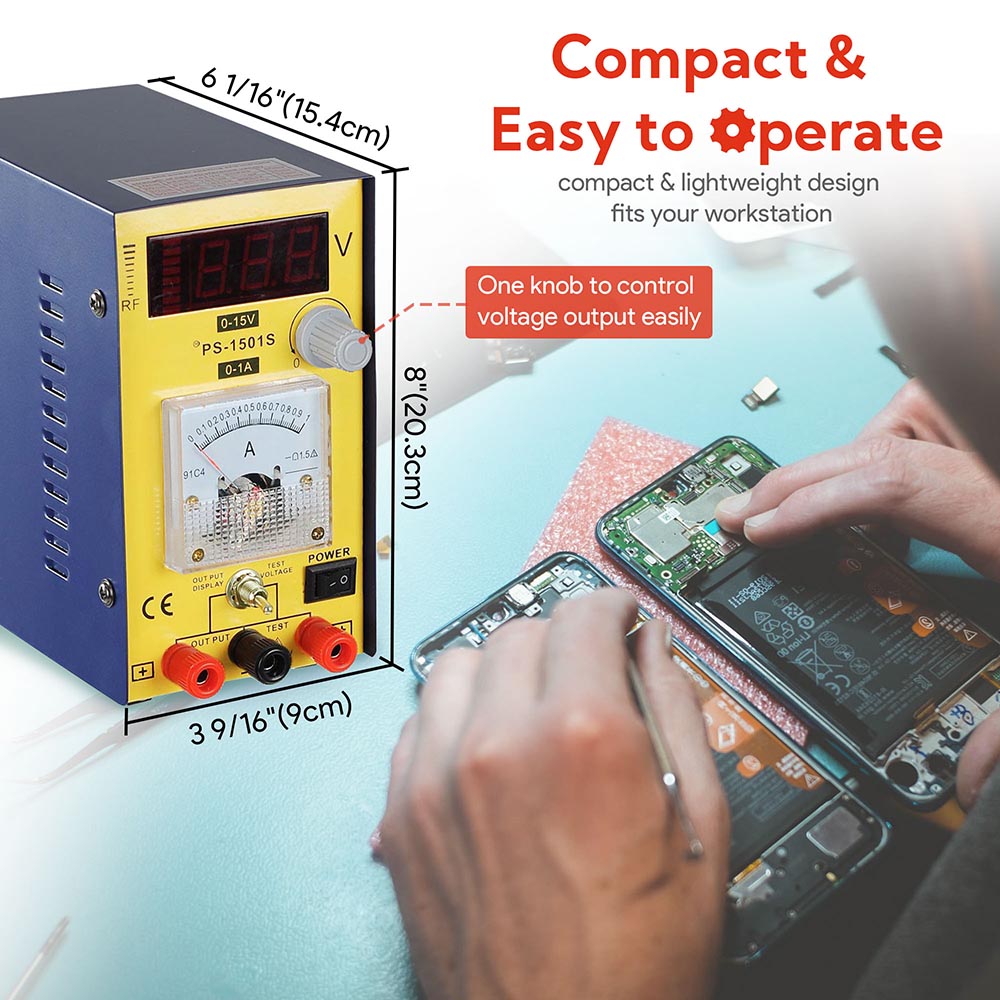

• Overall (LxWxH): 8" x 3 9/16" x 6 1/16" (20.3 x 9 x 15.4 cm)
• Supply Voltage: AC 110V
• Frequency: 60Hz
• Working Temperature: -10°C - 40°C
• Relative Humidity: ＜90%
• Storage Conditions: -20°C - 80°C
• Relative Humidity: ‹80%
• Net Weight: 1.98 Lbs (0.9 kg)

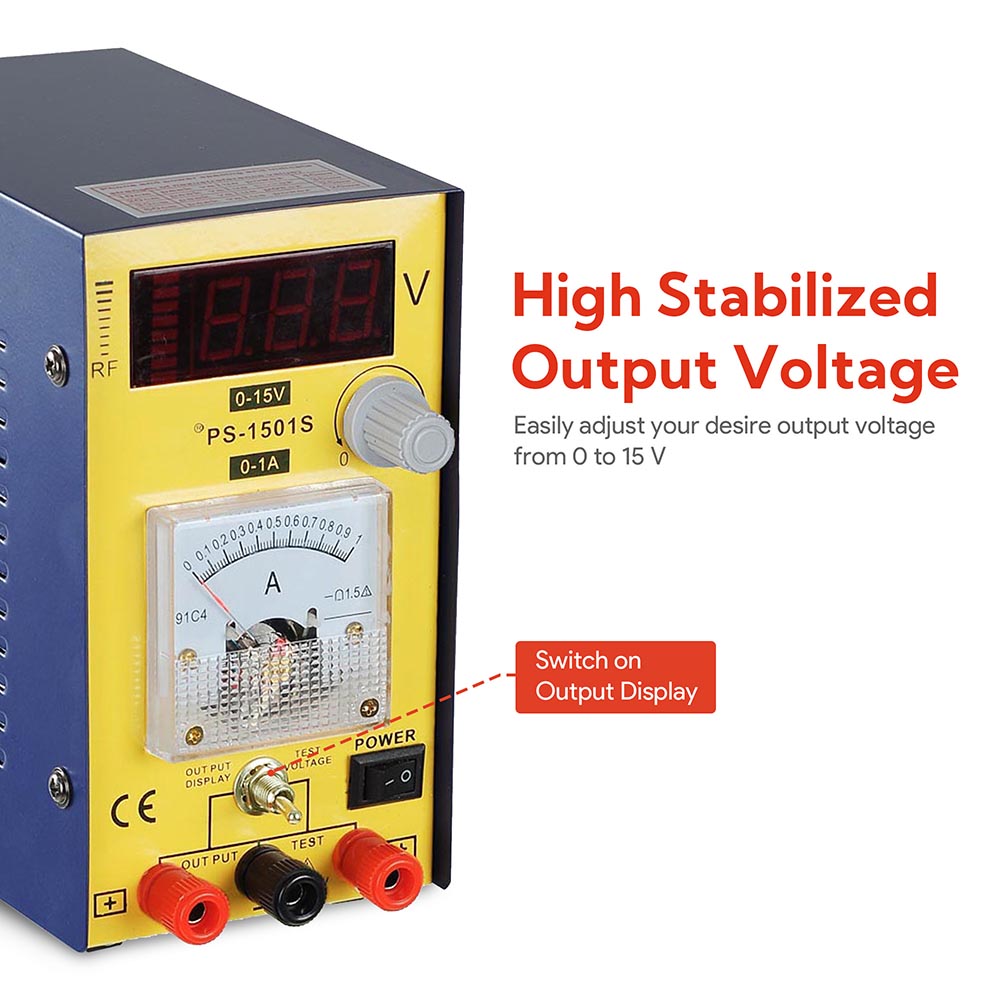

Stable Voltage

• Output Voltage: 0-15V, 0-1A
• Voltage Stability: ≤0.01% +2mV
• Load Stability: ≤0.01% +2mV
• Recovery Time: ≤100MS
• Ripple Noise: ≤1 MVRMS(RMS)
• Temperature Coefficient: ≤300PPM/°C

Notices:

• AC Input must be 110V.

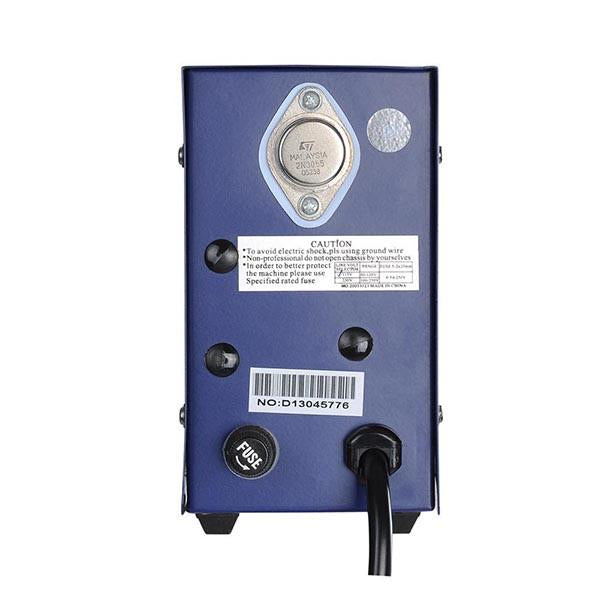

• Ventilation: Radiator at the rear of the equipment should Not be Blocked out;
• Please don't use it in the environmental temperature exceeds 45C.
• Please read the user's manual before use.

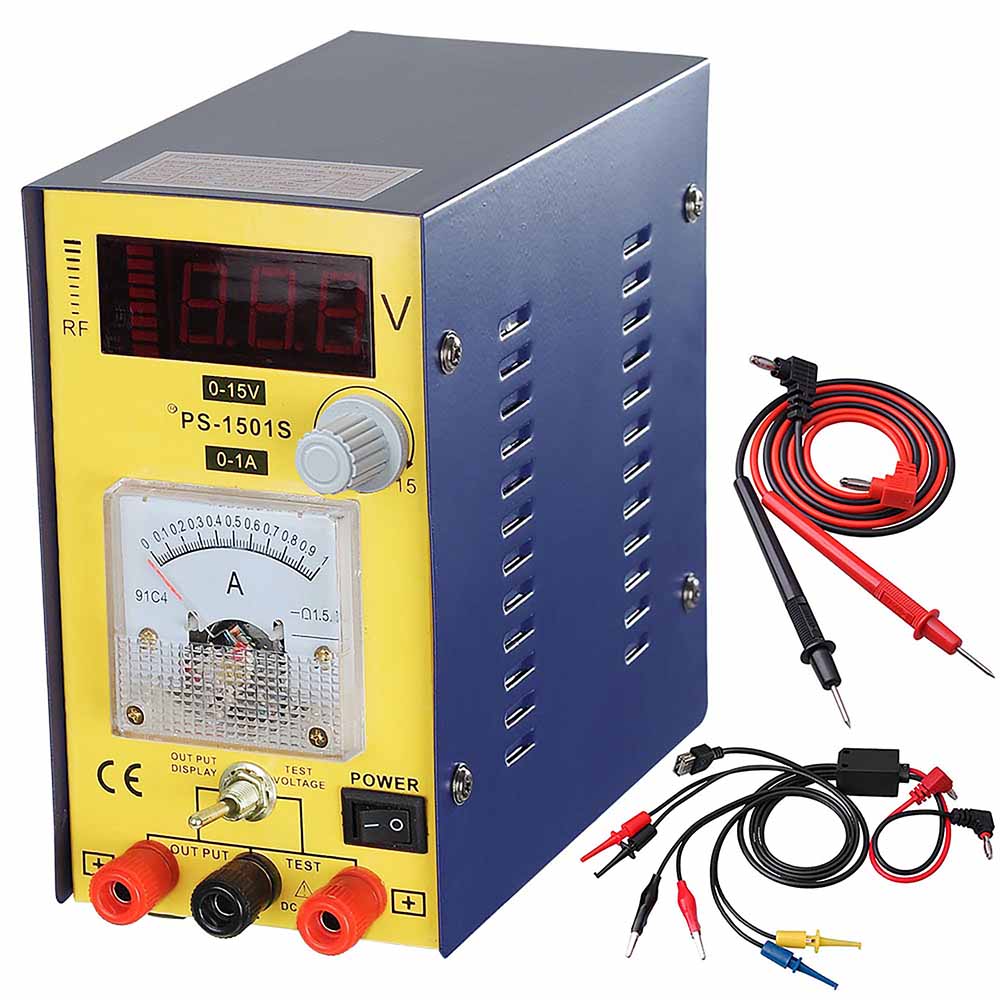

What's in the Package?

• 1x DC Power Supply
• 1x Multimeter Test Lead Wire(pair)
• 1x Multimeter Probe Cable
• 1x Manual
