DIY M10 6" Cable Turnbuckles Hook & Eye 304Stainless for 3/16" Rope

Built for heavy-duty cable railing and shade sail installations. This M10 hook & eye turnbuckle set (6-Pack) is crafted from premium 304 stainless steel, offering excellent corrosion resistance and a Working Load Limit (WLL) of 485 lbs (220 kg) for 1/8" and 3/16" wire ropes.

FEATURES

• Heavy-Duty Load Capacity: Engineered with a Working Load Limit (WLL) of up to 485 lbs (220 kg). Provides dependable stability and continuous tension control for demanding applications.
• Weather-Resistant 304 Stainless Steel: Built from solid 304 stainless steel with excellent rust and corrosion resistance. Designed to perform reliably in outdoor and wet environments.
• Versatile Cable Compatibility: Features precision-machined M10 threading designed to work seamlessly with both 1/8" (3.18 mm) and 3/16" (4.8 mm) stainless steel wire ropes (7x7 and 7x19 strand constructions).

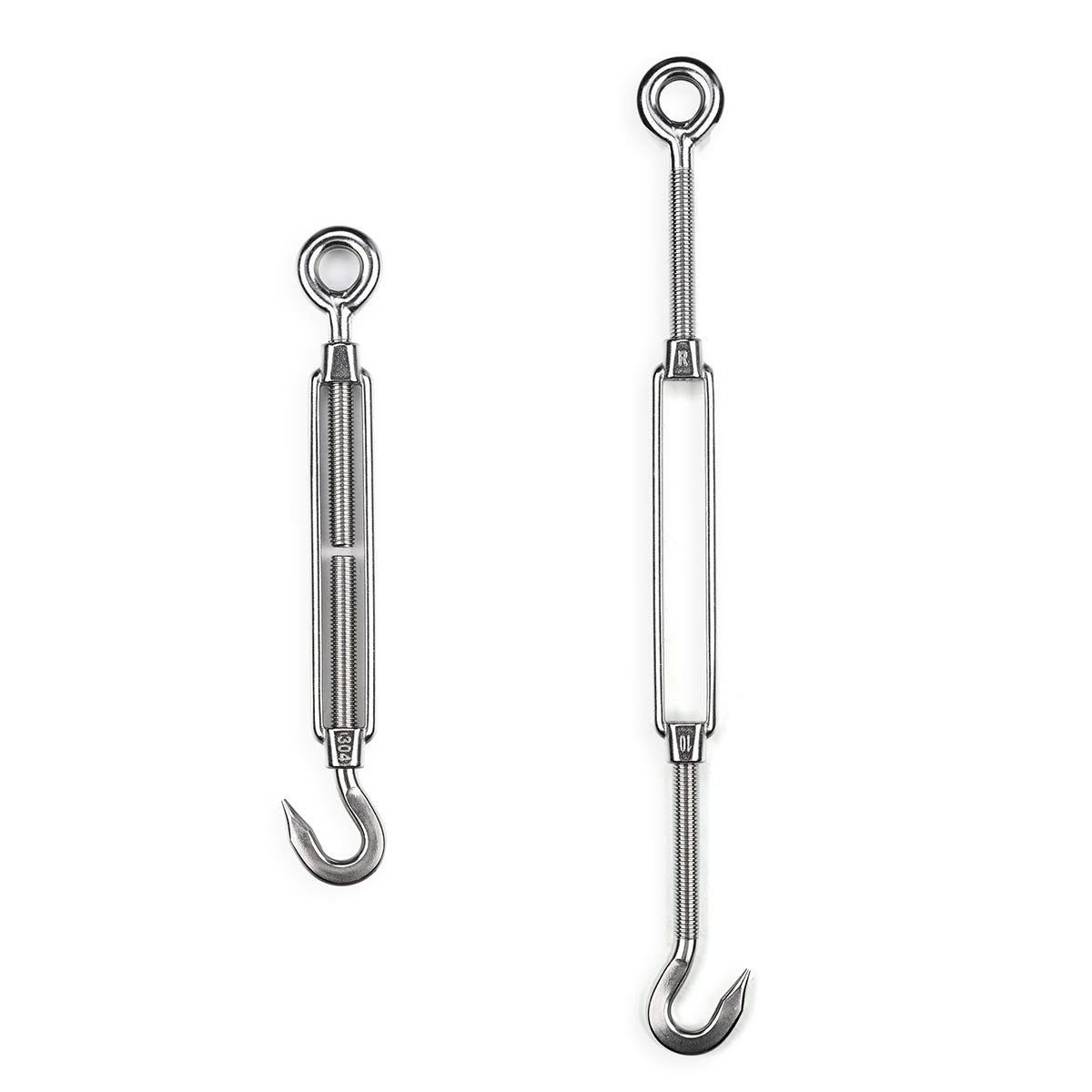

• Smooth Tension Adjustment: Classic hook-and-eye design enables quick attachment and simple length adjustments. Adjusts from a closed length of 5.9" (150 mm) up to an extended length of 9.4" (240 mm) (Max Open Span: 14.2" / 360 mm).

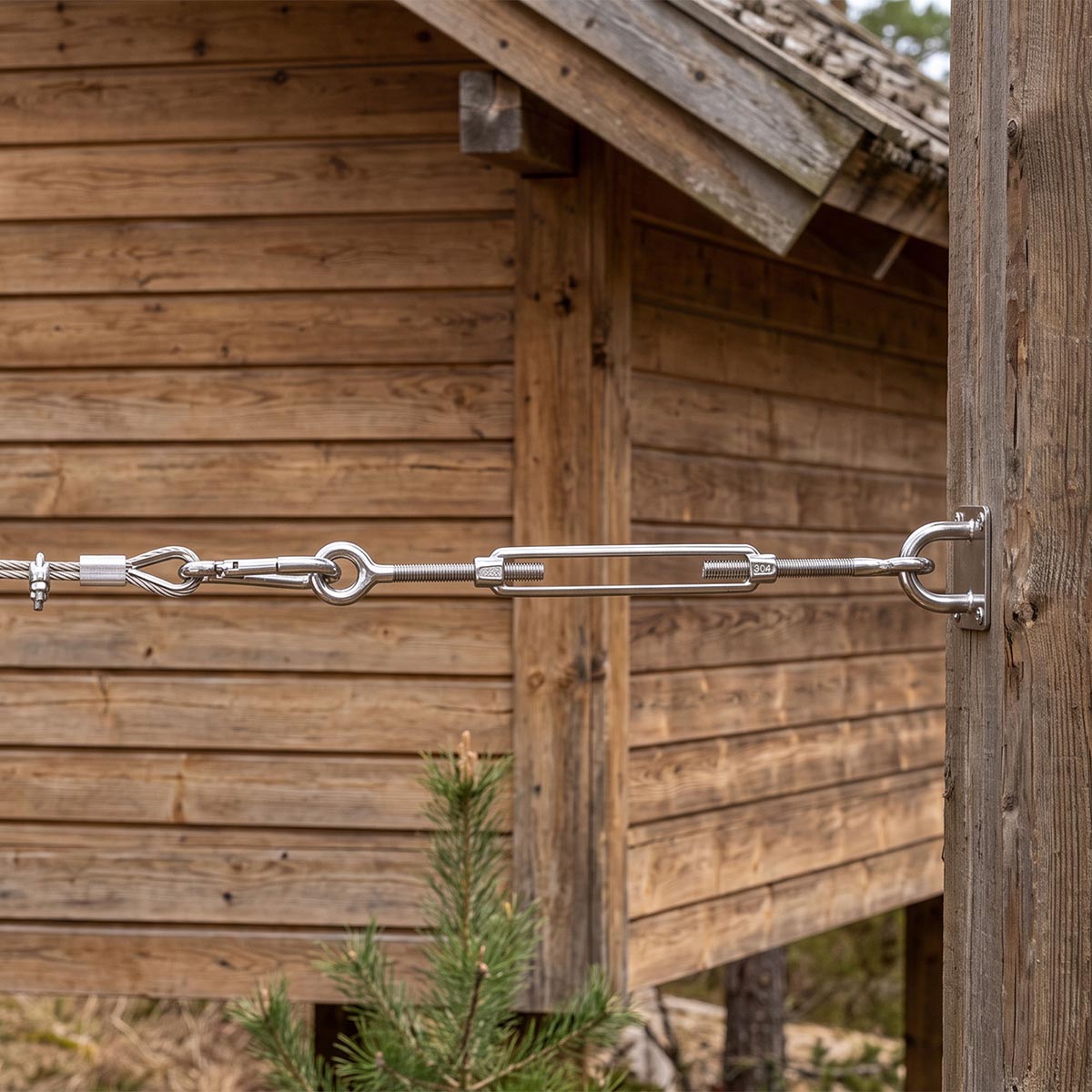

• Multi-Purpose 6-Pack Set: Pack includes 6 M10 hook & eye turnbuckles. Ideal for cable railing systems, shade sail installation, garden trellises, patio string lights, and chain link fence tensioning. *Note: Not for overhead lifting.

SPECIFICATIONS

• Thread Size: M10 (10 mm)
• Material: 304 Stainless Steel
• Working Load Limit (WLL): 485 lbs (220 kg)
• Compatible Cable / Wire Rope: 1/8" & 3/16" Diameter

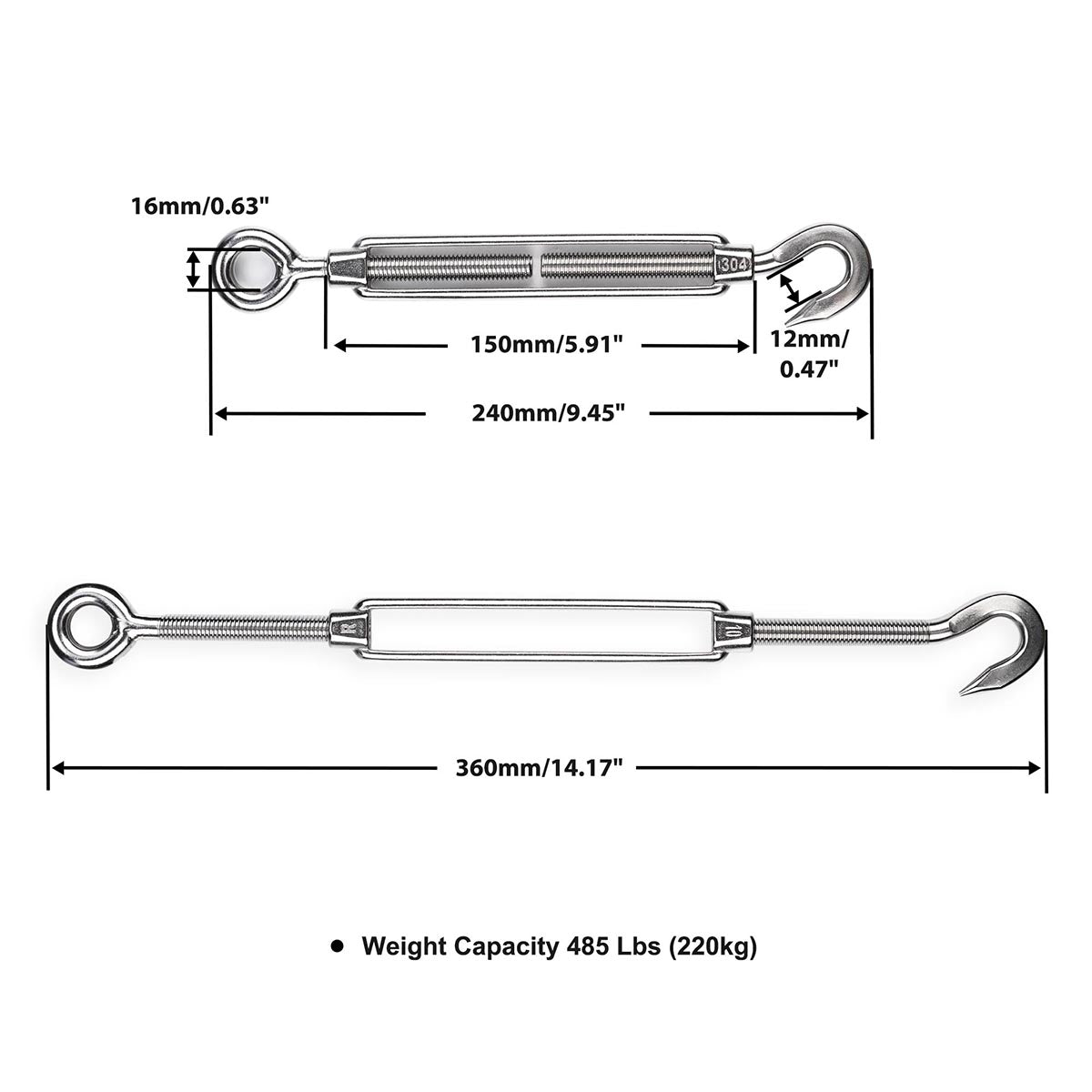

• Closed Length: 5.9" (150 mm)
• Extended Length: 9.4" (240 mm)
• Max Overall Open Span: 14.2" (360 mm)
• Hook / Eye Thickness: 15/32" (12 mm)

PACKAGE CONTENTS

• 6 x M10 Hook & Eye Turnbuckles

Shipping Disclaimer: Due to the size and weight of this product, it may be shipped in multiple packages. Packages may be delivered separately by the carrier.
