DIY T316 Swage Cable Tensioner for Deck/Level & Stair Posts 1/8"

30-Pack Invisible Receiver and Swage Stud Ends for 1/8" steel cables and wood or metal posts bring unobtrusive elegance to decks, staircases, and marine applications. Crafted from T316 marine-grade stainless steel, every component is built to withstand the harshest coastal environments.

FEATURES

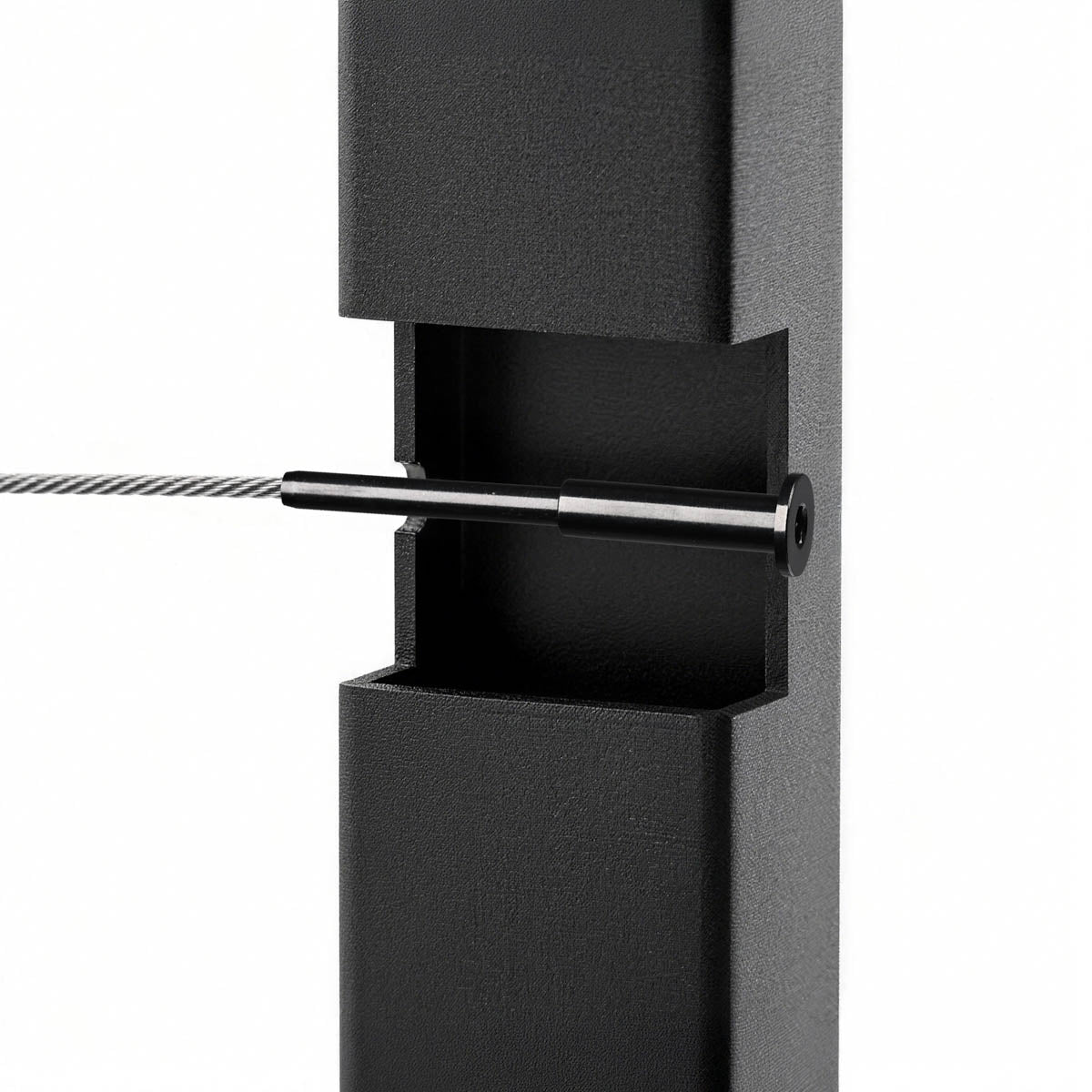

• Invisible Aesthetic for Unobstructed Views - 1/8" Invisible Cable Railing Kit achieves sleek, modern railings with minimal visual impact. Designed for wood or metal posts, it allows for both horizontal and angled installations, ideal for outdoor decks, marine rigging, and interior applications
• T316 Stainless Steel - Crafted from T316 marine-grade stainless steel, this hardware offers exceptional strength, weather resistance, and corrosion protection, making it ideal for coastal installations, saltwater exposure, and year-round outdoor use. Enjoy a railing system that requires virtually no maintenance for decades

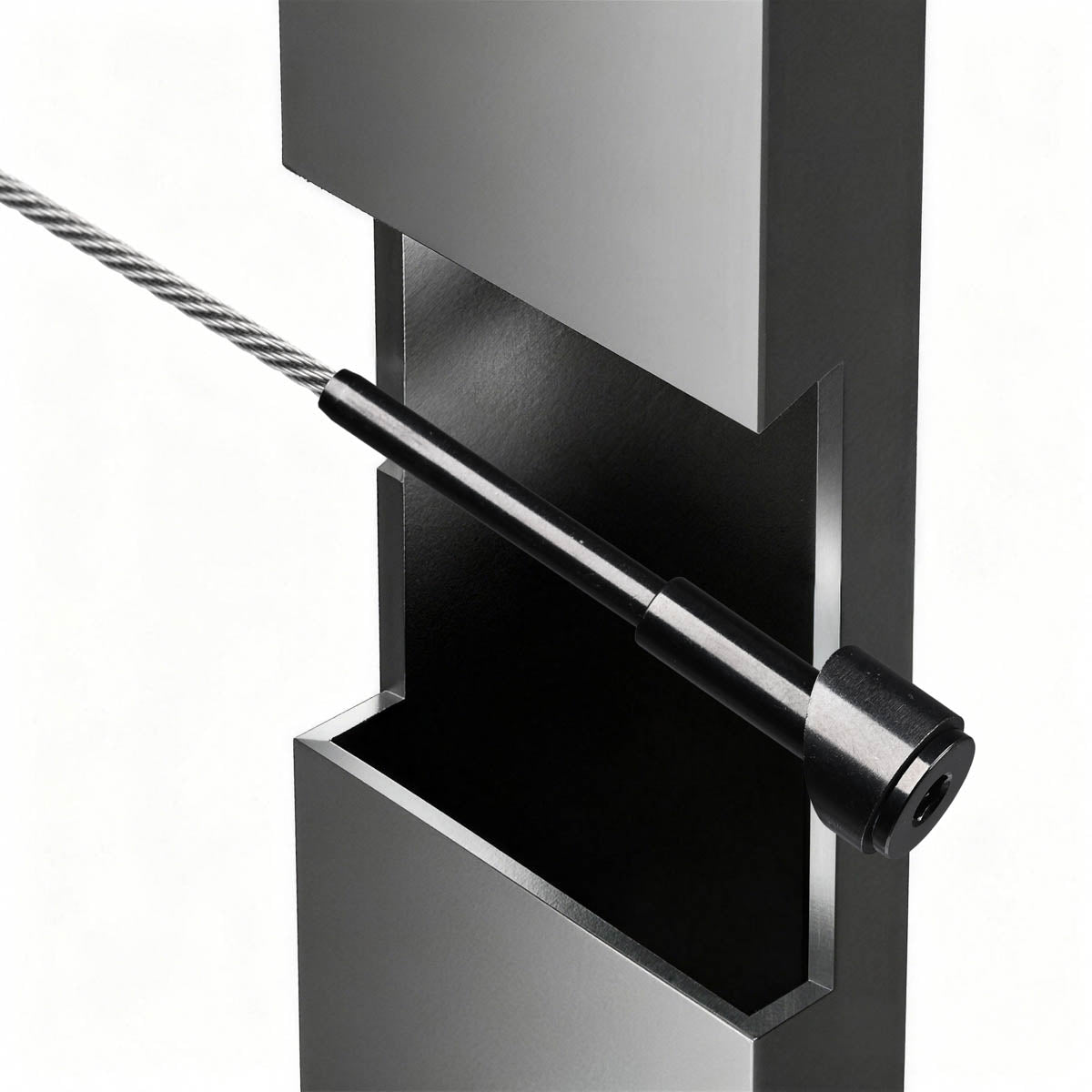

• Precision Compatibility for 1/8" Cable - These invisible receivers and swage stud ends specifically engineered for 1/8" stainless steel cable railings. For stair or angled applications, pair with our 5/16" dia 30-degree angled beveled washers (model YES0616) for a professional, secure fit
• Straightforward Installation - Achieve a flawless finish with confidence. Installation follows a simple step-by-step process (as illustrated), allowing for efficient, repeatable results across large projects. Note: Hydraulic swaging tool sold separately, contact us for recommendations or bulk hardware needs

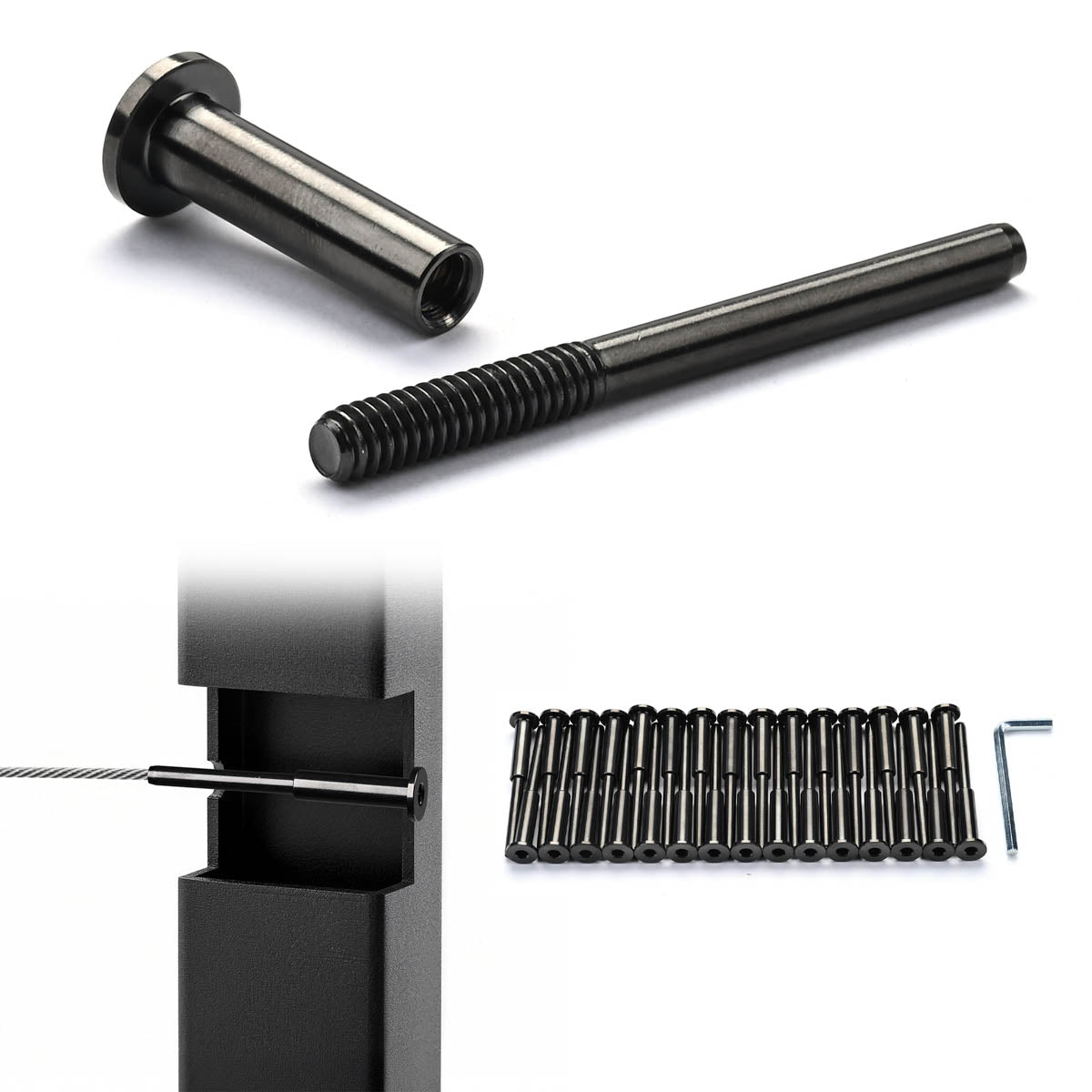

• Complete 30-Pack Kit - Streamline your material sourcing with this comprehensive kit. Includes 30 adjustable receivers and 1 hex key, fully meeting the requirements for single-side railings. For additional cable railing components, wire rope, or hardware inquiries, our team is ready to assist

SPECIFICATIONS

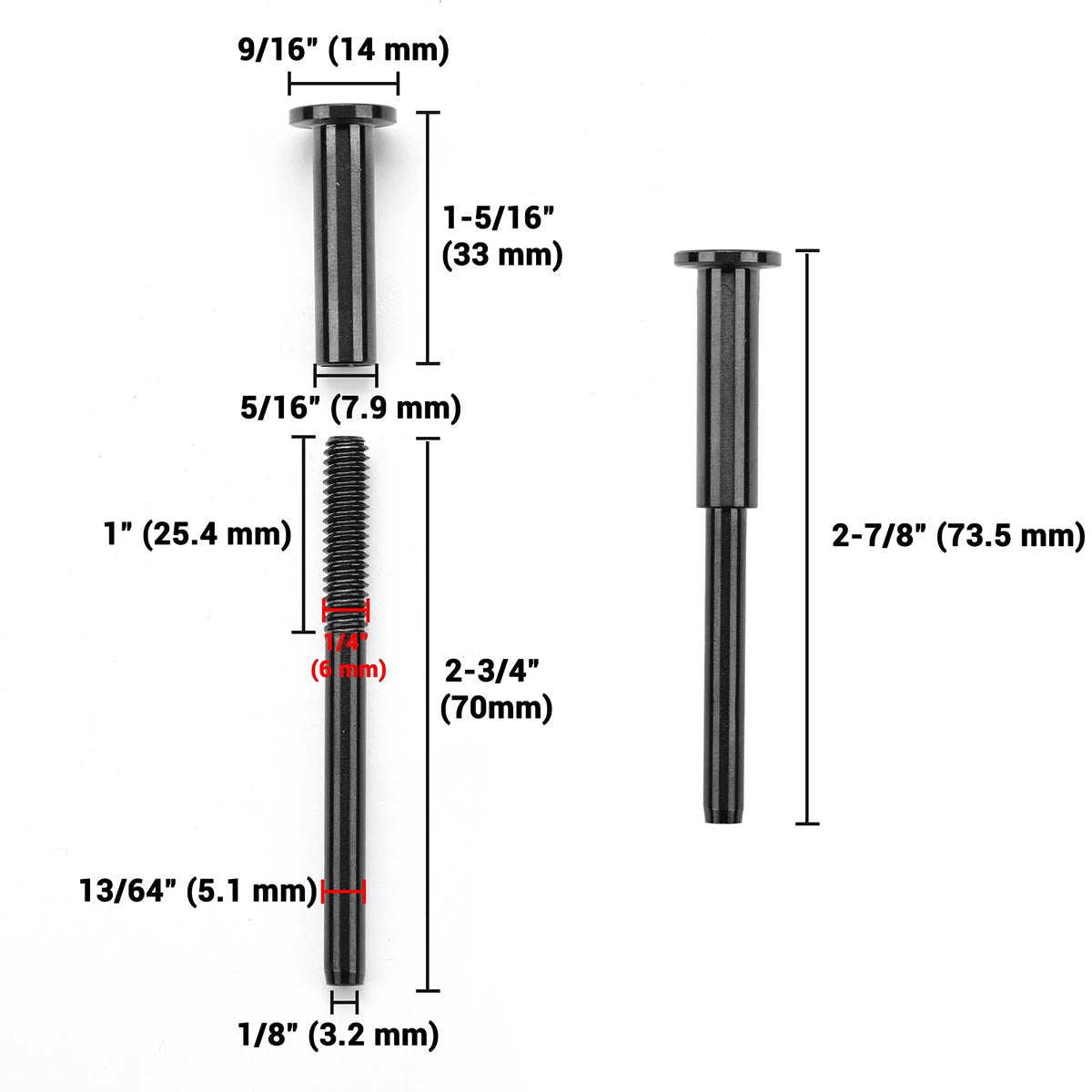

• Overall Dimension(DiaxL): 9/16" x 2 7/8" (14 x 73.5 mm)
• Tensioner Size(DiaxL): 9/16" x 1 5/16" (14 x 33 mm)
• Swage Stud End Size(DiaxL): 13/64" x 2 3/4" (5.1 x 70 mm)
• Thread Size(DiaxL): 1/4" x 1" (6 x 25.4 mm)
• Fits Stainless Steel Cable Dia: 1/8"
• Material: T316 Stainless Steel
• Net Weight: 0.88 Lb (0.4 kg)

PACKAGE CONTENTS

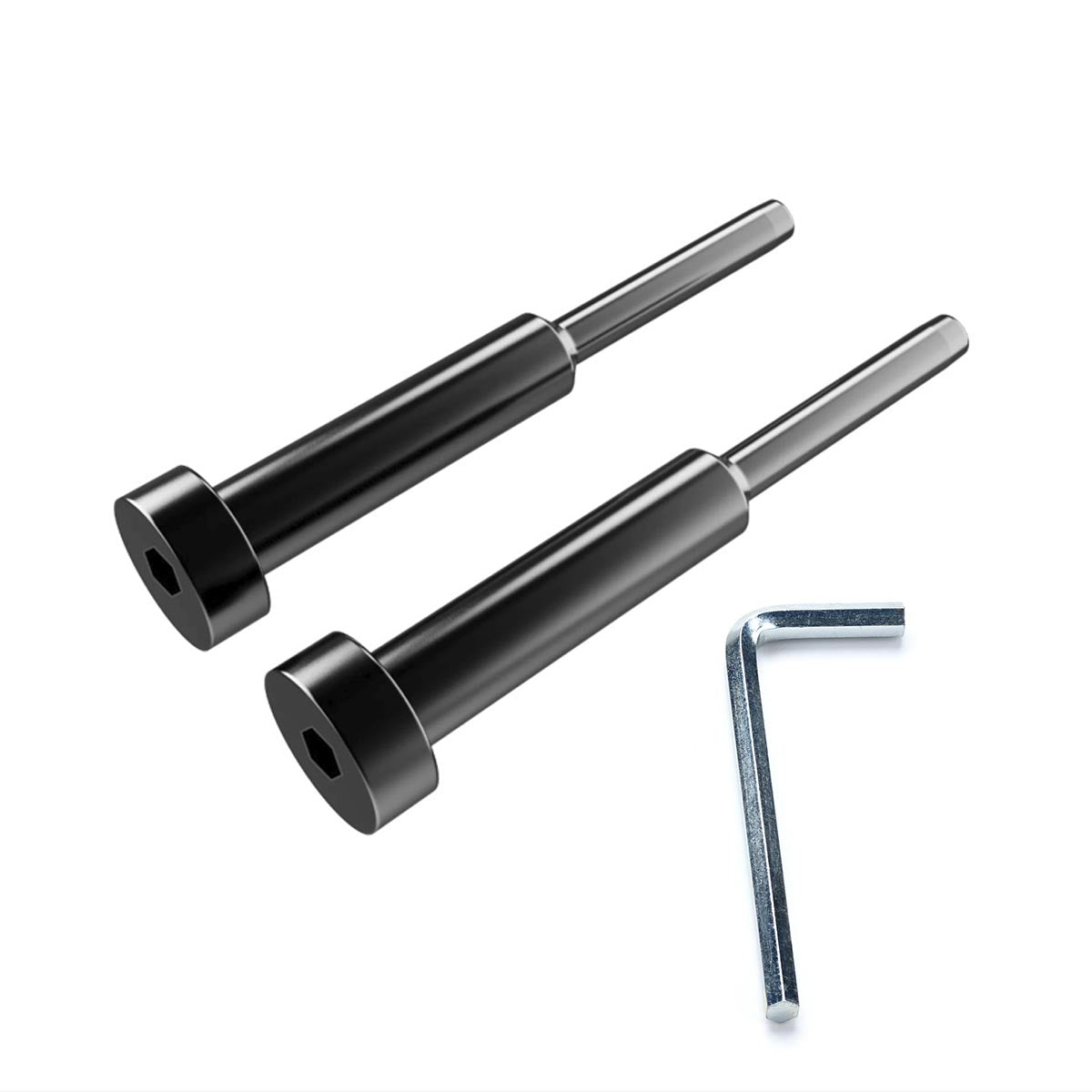

• 30x Invisible Receiver and Swage Stud Ends

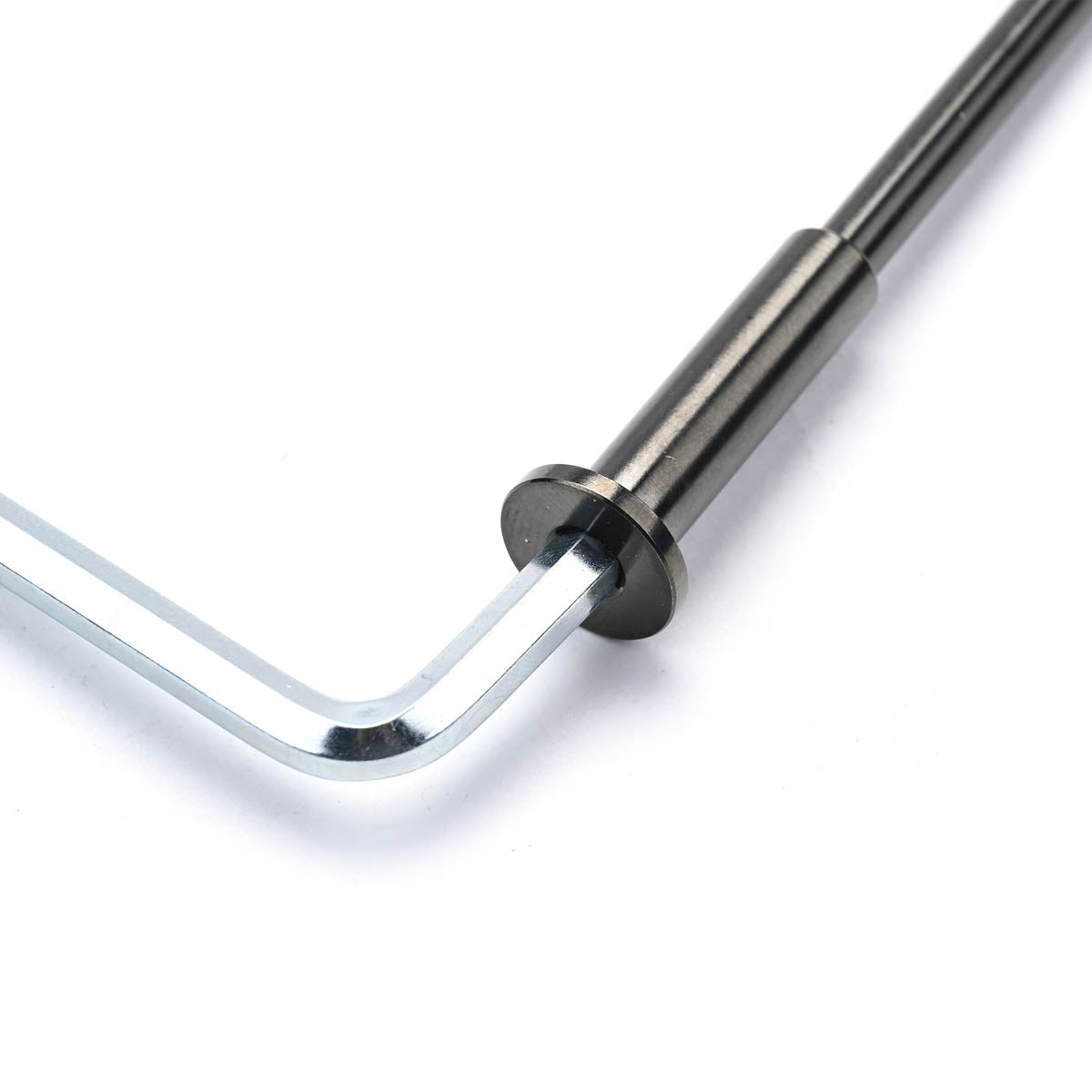

• 1x Allen Key
